Plan for drinking recycled wastewater

A plan to recycle wastewater and make it drinkable could see the delivery of water to city dwellers become much more efficient.

Using Houston as a model, researchers at Rice University's Brown School of Engineering have come up with an idea that could reduce the need for surface water (from rivers, reservoirs or wells) by 28%, through recycling wastewater to make it drinkable once again.

While the cost of energy needed for future advanced purification systems would be significant, the researchers said the savings realised by supplementing fresh water shipped from a distance with the 'direct potable reuse' of municipal wastewater would more than make up for the expense.

A comprehensive model of the environmental and economic impact and benefits of such a system was developed by Rice researchers associated with the National Science Foundation-backed Nanosystems Engineering Research Center for Nanotechnology-Enabled Water Treatment (NEWT).

Rice Environmental Engineer Qilin Li is corresponding author and postdoctoral research Lu Liu lead author of the study that appears in Nature Sustainability.

The study shows how Houston's planned reconfiguration of its current wastewater treatment system — by which it will eventually consolidate the number of treatment plants from 39 to 12 — can be enhanced to 'future-proof' water distribution in the city.

"All the technologies needed to treat wastewater to drinking water quality are available," Li said.

"The issue is that today, they're still pretty expensive. So a very important part of the paper is to look at how cheap the technology needs to become in order for the whole thing to make sense financially and energy-wise."

Advanced water treatment happens to be a subject of intense study by scientists and engineers at the many institutions, including Rice, associated with NEWT.

"Another way to improve potable water would be to cut its travel time," she said.

Water delivered by a system with many distribution points would pick up fewer chemical and biological contaminants en route. Li said Houston already has well-distributed wastewater treatment, and making that water drinkable would facilitate shorter travel times to homes.

The model shows there will always be a trade-off between the acquisition of potable water, the energy required to treat it, the cost of transporting it without affecting its quality and attempts to find a reasonable balance between those factors. The study evaluated these conflicting objectives and exhaustively examined all possibilities to find systems that strike a balance.

"Ultimately, we want to know what our next-generation water supply system should look like," Li said.

"How does the scale of the system affect distribution? Should it be one gigantic, centralised water source or several smaller distributed sources?

"In that case, how many sources should there be, how big of an area should each supply and where should they be located? These are all questions we are studying," she said. "A lot of people have talked about this, but very little quantitative work has been done to show the numbers."

Li said Houston may not be the most representative of major municipal infrastructure systems, because the city's wastewater system is already highly distributed, but its water supply system is not. The challenge of having a highly centralised water supply was demonstrated by a dramatic 96-inch water main break in February that cut off much of the city's supply.

"That was an extraordinary example, but there are many small leaks that go undetected underground that potentially allow contaminants into homes," she said.

The study only looked at direct potable reuse, which the model shows as a more economic option for established cities, but she said the best option for a new development — that is, building a distribution system for the first time — may be to have separate delivery of potable and nonpotable water.

"That would be prohibitive cost-wise in a place like Houston, but it would be cheaper for a new community, where wastewater effluent can be minimally treated, not quite drinkable but sufficient for irrigation or flushing toilets," Li said.

"Though maybe it would be to Houston's advantage to use detention ponds that already exist throughout the city to store stormwater and treat it for nonpotable use."

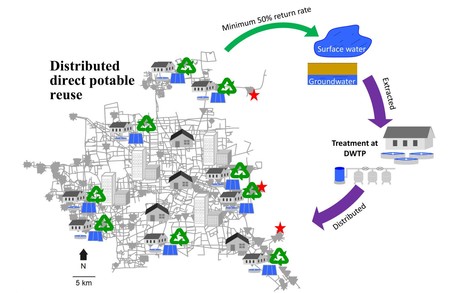

Image caption: A schematic representation of the hybrid water supply system developed by engineers at Rice University. The researchers suggest that delivering water to city dwellers can become far more efficient, and that it should involve a healthy level of recycled wastewater.
